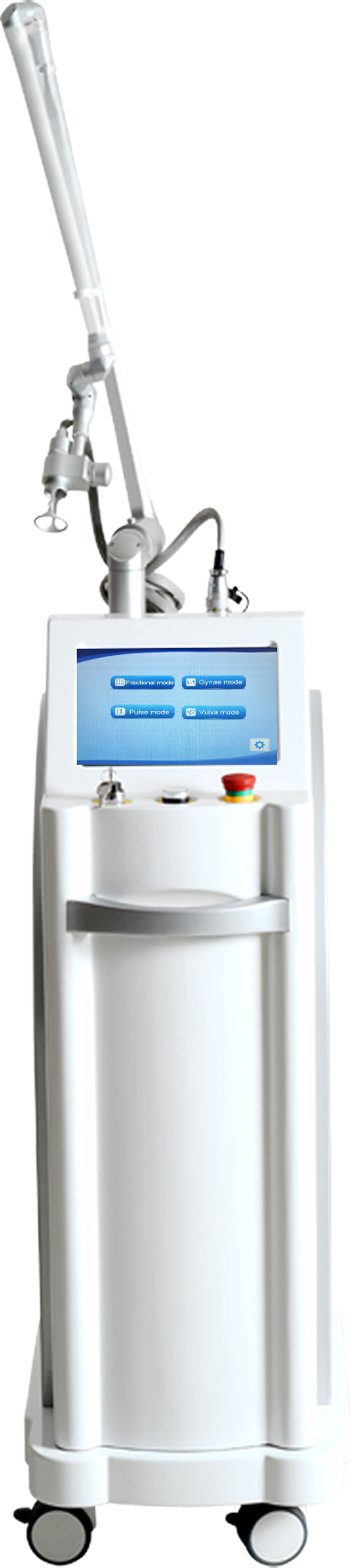

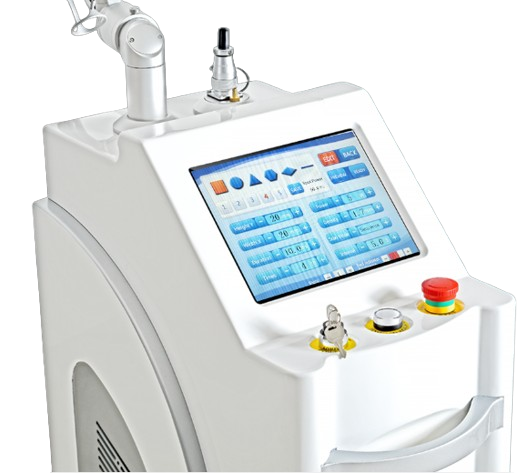

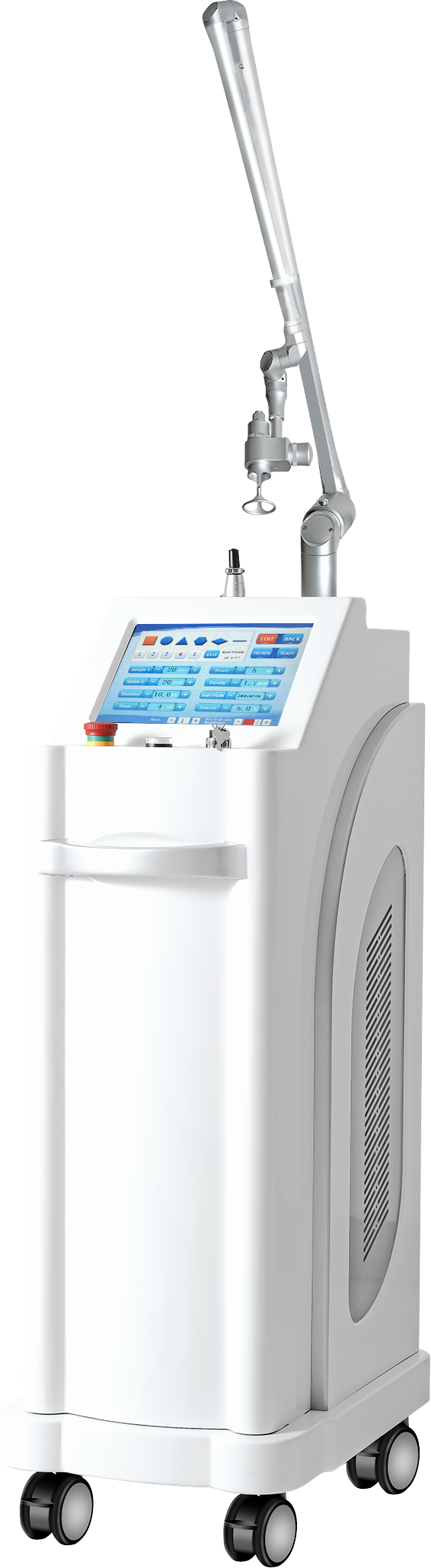

HM-New Vertical CO2 fractional laser CO2-100
TREATMENT PRINCIPLE
Fractional laser is a revolutionary progress based on fractional photothermolysis theory and shows the unique advantages in a short time .Small beam array produced by fractional laser applied to the skin, after that,the form multiple 3-D cylindrical structure of small thermal damage zone ,called micro treatment area (microscopic treatment zones ,MTZ)of 50~150 microns in diameter .as deep as 500 to 500 microns.Different with lamellar thermal damage caused by traditional peeling laser ,around every MTZ there is normal tissue not damaged cutin cell can crawl quickly,make MTZ heal quickly ,without day off ,without peeling treatment risks.
The machine adopts CO2 laser technology and precise control technology of galvanometer scanning ,using CO2 laser heat penetration effect ,under the guide of a accurate scanning galvanometer,formed with uniform lattice minimally smaller holes disameter of 0.12mm,Under the effect of laser energy and heat ,the skin wrinkles or scar organization is instaneous evenly distributed vaporization and formed in a micro-heatina zone center on minimallv invasive hole.to stimulate the skin compound of new collagen tissue,and then start the tissue repair ,collagen rearrangement etc .
| Model | CO2-100 | Technology | Carbon Dioxide Fractional Laser |
| Screen | 10.4 Inch Color Touch Screen | Input Voltage | AC 110V/220V 50-60Hz |
| Laser Wavelength | 10600nm | Laser Power | Up To 40W(Optional) |
| Light System | 7 Joint Arms | Pulse Duration | 0.1-10ms |
| Distance | 0.2-2.6mm | Area Of Diagrams | ≤20mm*20mm |
| Scanning Mode | Sequence, Random, Parallel (Switchable) | Scanning Shapes | Triangle/Square/Rectangle/Round/Oval |
CO2
FRACTIONAL LASER

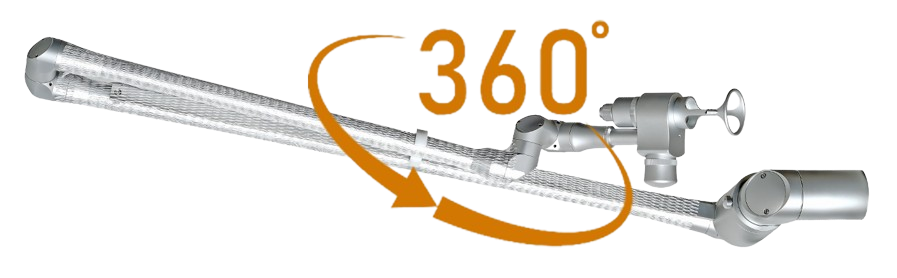

Korean 7 joints light guide arm
360°smooth operation
3 technical
advantages
1. Korean 7-joints light guide arm, 360° smooth operation
2. 60W high power, American RF laser tueb, service life exceeds 30000 hours
3. Full intelligent operationg system, easy to operate.

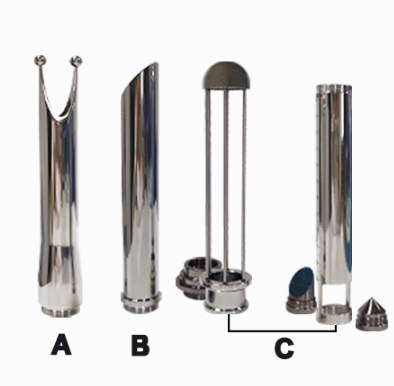

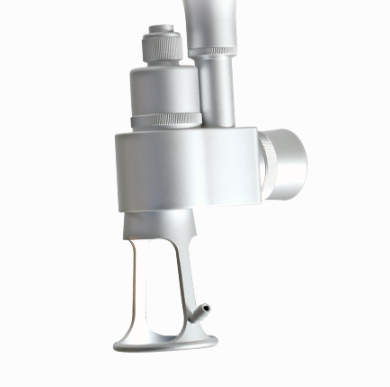

TREATMENT HANDLE

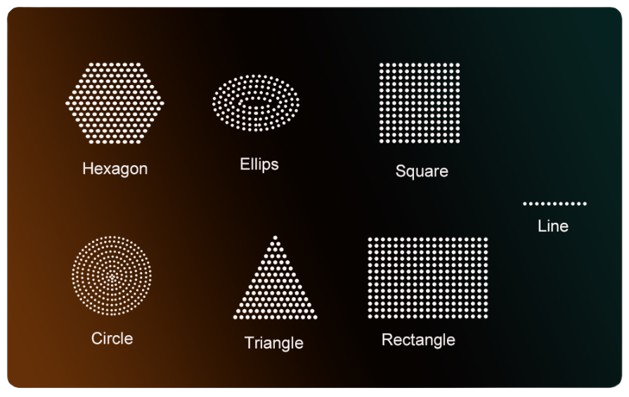

7 Varable Treatment Graphics
Fractional Mode
1. Wrinkles and fine lines
2. Actinic elastosis
3. Solar lentigines(age spots)
4. Atrophic scars
Gynecological Mode
1. Common warts,flat warts
2. Pigmented mole
3. Atrophic scars, hypertrophic scars

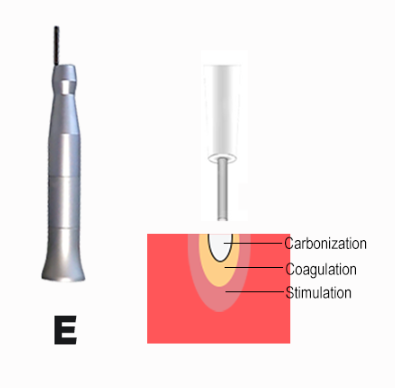

co2 surgery Mode
1. Improve vaginal relaxation
2. Improve stress urinary incontinence
3. Beautify the appearance of private parts
4. Improve vaginal dryness

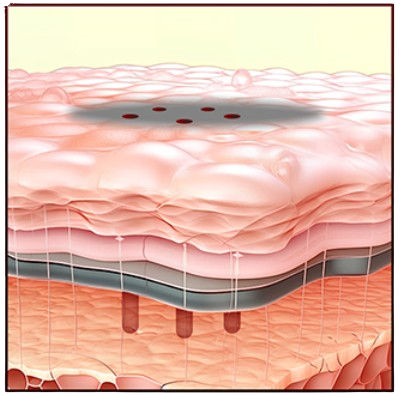

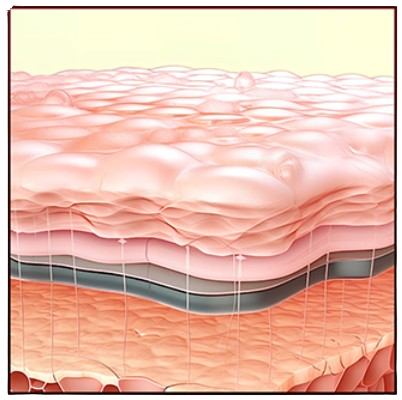

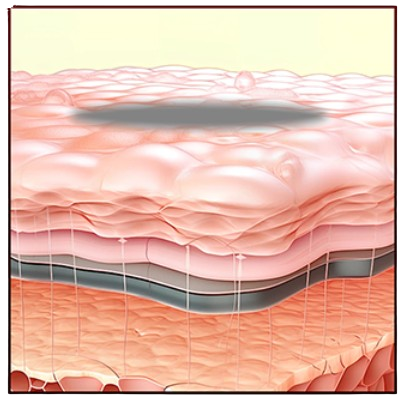

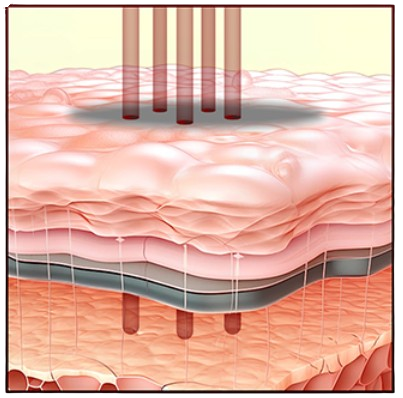

PRINCIPLE
Skin problems
Laser skin ablation
Health
Before
After
Fractional ablative Co2 resurfacting delivers 10600nm laser in fractional manner into the skin while leaving the untreated surrounding areas intact. Laser creates microscopic thermal dot on surface and performs within tissues. Offering improve skin tightening, age spots, fine lines, acnescars. Stretch marks removal and vulva rejuvenation. The untreated tissue helps to accelerate the healing process and rejuvenate the skin by promoting microcirculation and new cell genesis.
APPLICATION
Reliable,
High-Quality Components
Germany TUV Medical CE & FDA Approved: Ensures international standards for safety and performance.
Imported Laser Generator: Minimizes light loss rate to less than 12%.
Meanwell Power Supply: Ensures stable and long-lasting power during treatments.
Contraindications
1 Known hypersensitivity to light
2 Treatment with medication that increases sensitivity to light
3 Treatment with blood thinners
4 Treatment with oral isotretinoin within the past 6 months
5 Pregnancy 6.History of hypertrophic scarring
